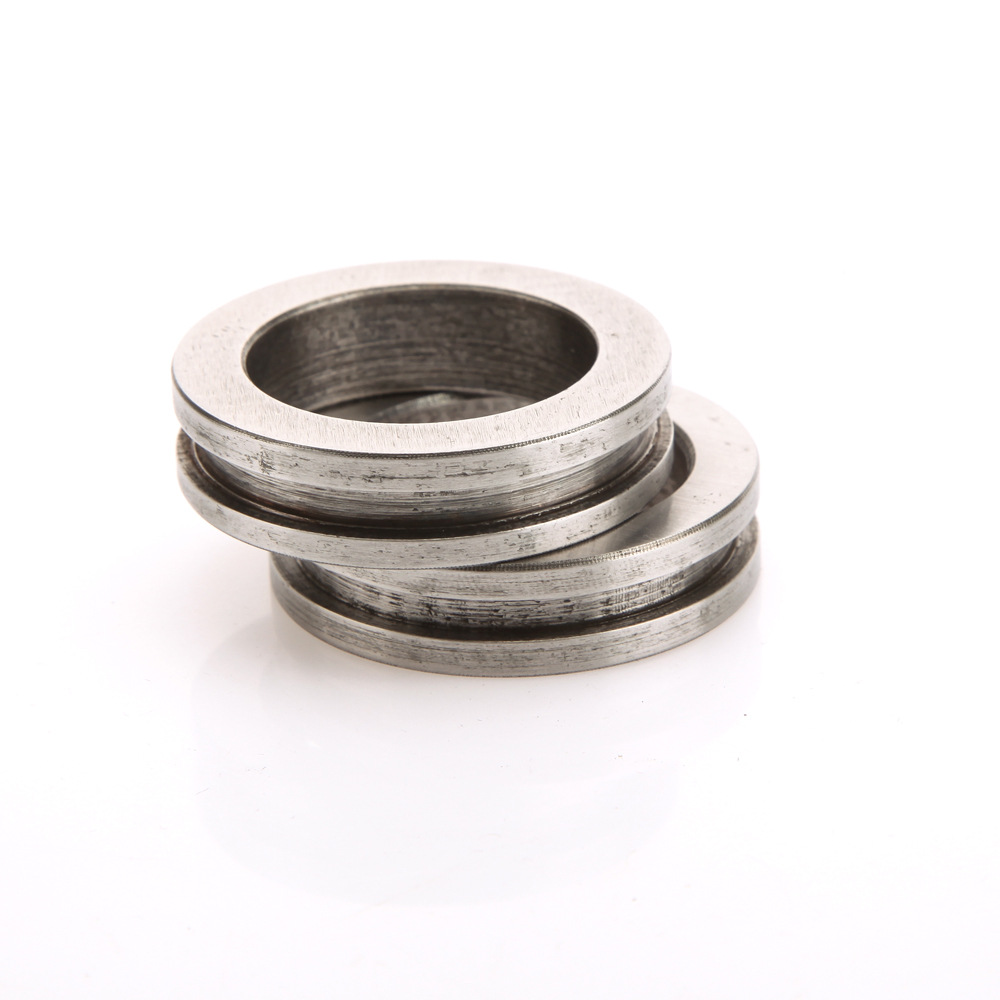

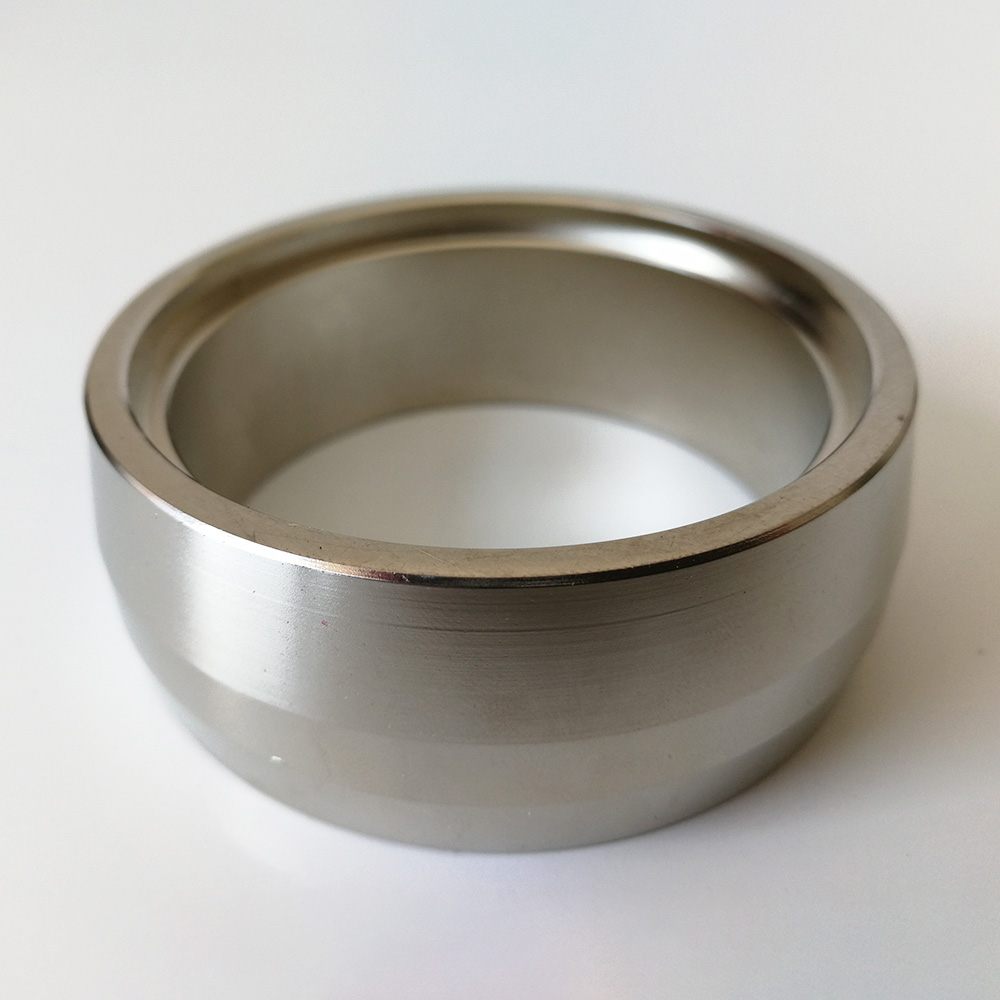

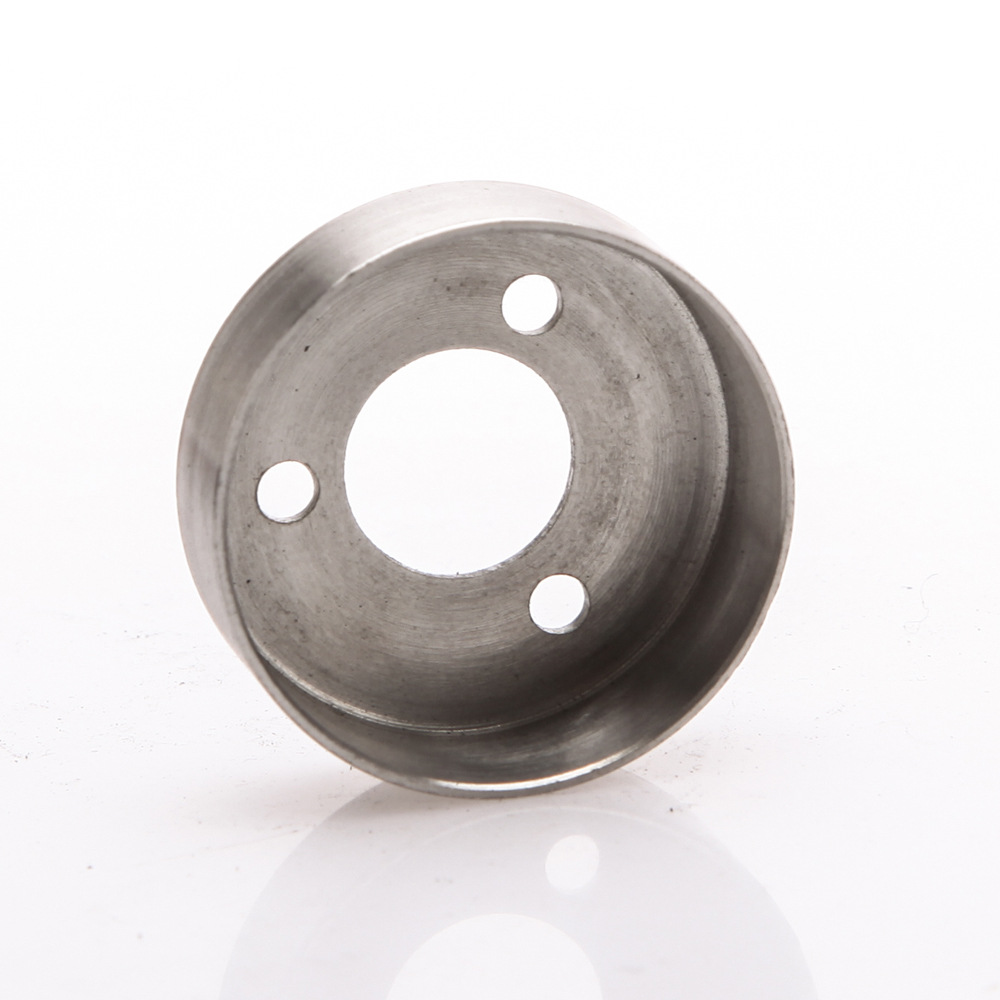

FeCrCo Magnet

Iron chromium cobalt permanent magnets(FeCrCo Magnet) can be magnetized by plane octupole, multi-pole magnetized by plane, and have the advantage of being machined. It is especially suitable for small and thin permanent magnet components with complicated shapes and sizes. It can be used in telephones, tachometers, micro motors, micro relays, speakers, etc.

Descriptions of Features

1. FeCrCo permanent magnet alloy properties are close to permanent magnet alloy properties.
2. FeCrCo permanent magnet alloy has good machining performance and can be drilled、 planned 、weared、stampted and other machining operations.
3. FeCrCo permanent magnets can be made into small 、slender components of various shapes, the minimum wire diameter can be up to 0.05mm, and the thickness of the thinnest strip is only 0.1mm.
4. FeCrCo permanent magnet alloy has excellent temperature stability 、good corrosion resistance and high curie temperature(about 680℃), the maximum working temperature is 400℃.

Properties stable

Properties	Max.Energy product (BH)max	Residual Fulx Br	Coercive Force Hcj	IntIntrinsic Coercive Force Hcj	Density	Temperature Cofficiencα (Br)	Remark


Grade	Minimum value				Typical value
	KJ/m3 (MGOe)	mT (kGs)	KA/m (kOe)	KA/m ( kOe)	g/cm3	%k	Isotropy
	KJ/m3 (MGOe)	mT (kGs)	KA/m (kOe)	KA/m ( kOe)	g/cm3	%k
CrFeCo4/1 Semi-hard magnetic	4-8 (0.5-1.0)	800-1000 (8.5-10)	8-31 (0.10-0.40)	9-23 (0.11-0.4)	7.7	-0.03
CrFeCo10/3	10-13 (1.1-1.6)	800-900 (8.9-9.0)	31-39 (0.40-0.48)	32-40 (0.41-0.49)	7.7	-0.03
CrFeCo12/4	12-18 (1.5-2.2)	750-800 (7.5-8.5)	40-46 (0.50-0.58)	41-47 (0.51-0.59)	7.7	-0.02
CrFeCo12/5	12-16 (1.5-2.0)	700-800 (7.0=8.0)	42-48 (0.53-0.60)	43-49 (0.54-0.61)	7.7	-0.02	Anisotropy
CrFeCo1/1 Semi-hard magnetic	1-9 (0.1-1.1)	900-1300 (9-13)	2-8 (0.025-0.1)	2-8 (0.025-0.1)	7.7	-0.03
CrFeCo12/2 Semi-hard magnetic	12-36 (1.5-4.5)	1300-1450 (130.0-14.5)	12-40 (0.15-0.5)	13-41 (0.16-0.51)	7.7	-0.03
CrFeCo24/6	24-30 (3.0-3.8)	900-1100 (9.9-11)	55-66 (0.70-0.83)	57-67 (0.71-0.84)	7.7	-0.02
CrFeCo28/5	28-36 (3.5-4.5)	1100-1250 (11.0-12.5)	49-58 (0.61-0.73)	50-59 (0.62-0.74)	7.7	-0.02
CrFeCo44/4	44-52 (5.5-6.5)	1300-1450 (13.0-14.5)	44-51 (0.56-0.64)	45-52 (0.57-0.64)	7.7	-0.03
CrFeCo48/5	48-55 (6.0-6.9)	1320-1450 (13.2-14.5)	48-53 (0.6-0.67)	49-54 (0.61-0.68)	7.7	-0.03

Sizes and models of FeCrCo permanent magnet alloy

Shape

Size(mm)

State

Strip

Thickness*width
(0.05-4) * (100-200)

Soft, hard

Wire

φ0.1～φ8.0

Soft,hard

Bar

φ8-φ60

Forging
hot-rolling

tube

Outer diameter*Inner diameter
φ1*(φ0.1-φ0.5)
-φ30(φ1-φ10)

Soft, hard
