Adhesive Magnets
Please let us know what type of object you want the adhesive to stick to (such as paper, plastic, metal, or wood) and the application (such as indoor or outdoor, normal temperature, high or low temperature) and we will provide more information and there is standard indoor adhesive and stronger outdoor adhesive available.

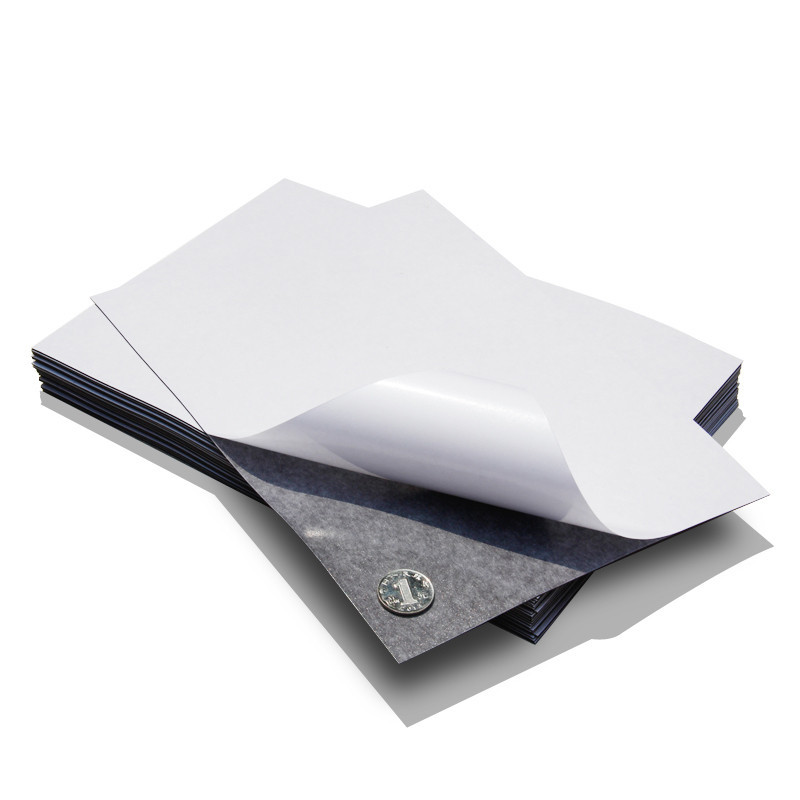

Adhesive Magnetic Sheets
Dimension of Self-adhesive magnetic sheet
1. Magnet thickness: 0.4~8mm
2. Popular size: 500*310mm, 600*900mm, 297*210mm,1000*620mm
3. Special size: we can also offer a special die cut or kiss cut upon your request. It will be more convenient to use and stock if you need a very small size of the Self-adhesive magnetic sheet.
Magnetic properties of Self adhesive magnetic sheet
|
|
Isotropic(standard Energy) |
Anisotropic(high energy) |
|
BR(GS) |
1550-2100 |
2200-2700 |
|
HCB(Oe) |
1100-1700 |
1700-2500 |
|
HCJ(Oe) |
2000-3000 |
2300-3500 |
|
BH(max)(MGOe) |
0.40-0.80 |
1.21—1.60 |

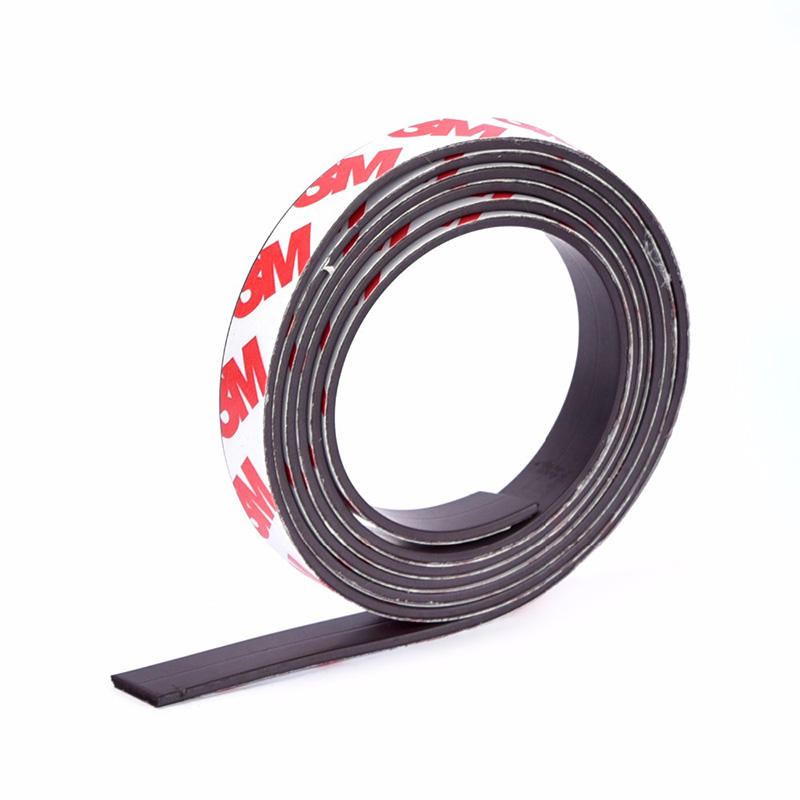

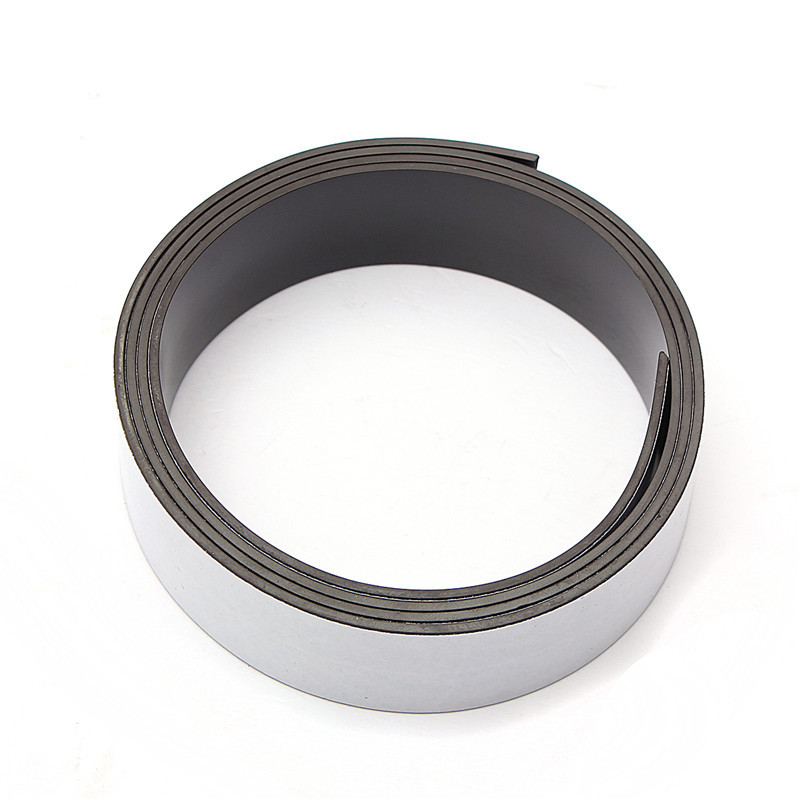

Magnetic Strips With Adhesive Backing

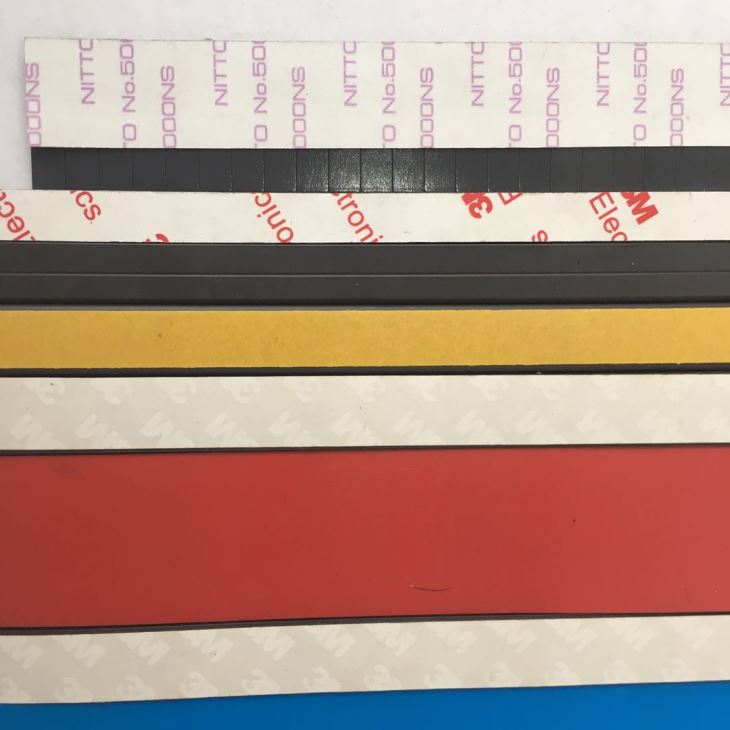

There are many different types of adhesive such as solvent, rubber or foam that can be laminated on the non-magnetized side of our premium magnetic extruded strips. Then you can adhere anything to the magnet strip and stick it onto fridges, file cabinets or any other metal surfaces.
Dimension of Magnetic strips with adhesive backing
Standard sizes: 30Mx12.7x1.5mm(100Ftx0.5inchx60mil)
30Mx19x1.5mm(100Ftx0.75inchx60mil)
30Mx25.4x1.5mm(100Ftx1.0inchx60mil)
Other sizes are available as well.
Magnetic properties of Magnetic strips with adhesive backing
|
Material |
BH(max) |
BR |
HCB |
HCJ |
|
Isotropic |
0.66-0.8MGOe |
1650-2100GS |
1300-1700Oe |
2100-3000Oe |
|
Anisotropic |
1.0-1.2MGOe |
2100-2400GS |
1700-2000Oe |
2300-3200Oe |
Self Adhesive Magnetic Sheets Strong Magnetic Tape Magnetic Strips with Adhesive Backing.
