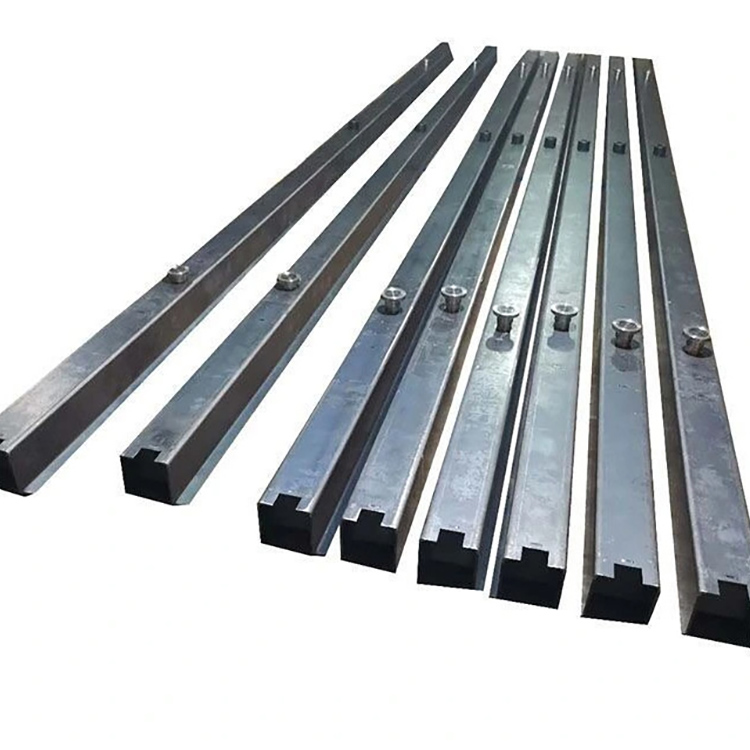

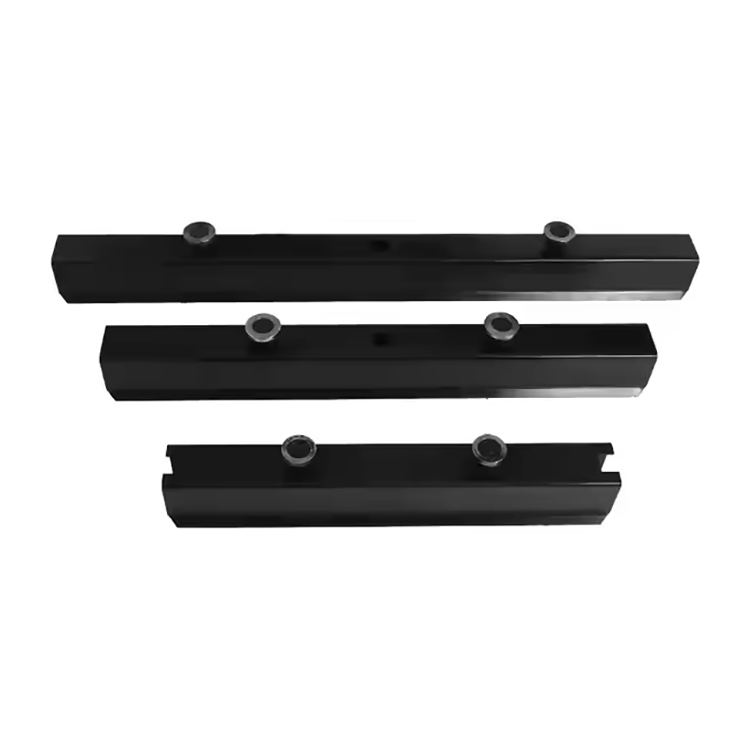

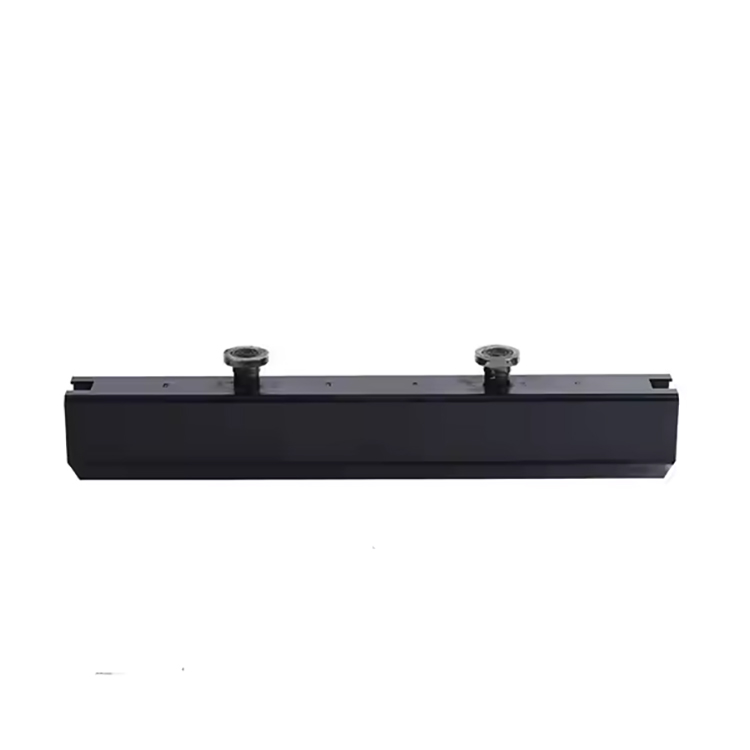

Magnetic Formwork System

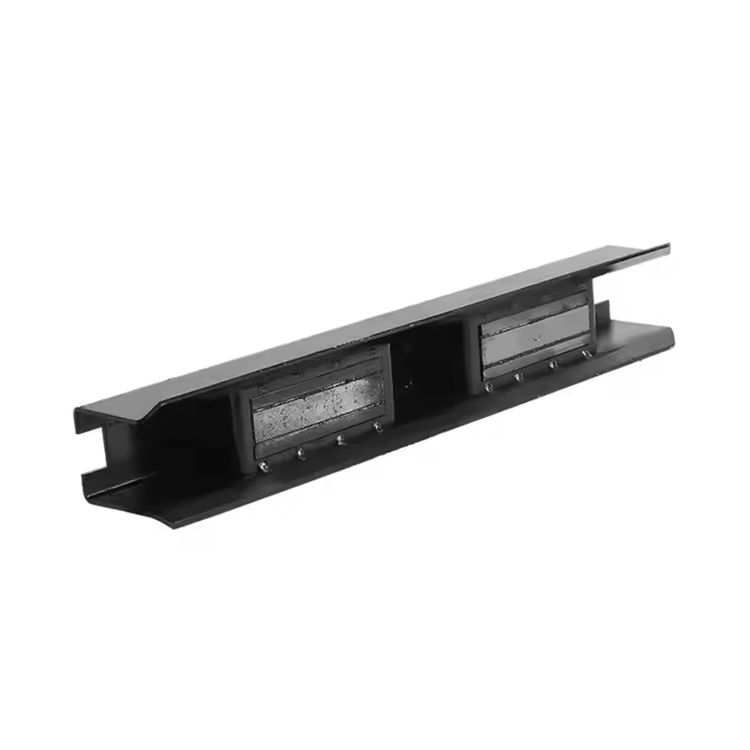

This system combines template steel bars with an embedded magnetic suction cup system, offering a versatile and adaptable solution for different concrete formwork requirements. The width of the steel molds is customizable, enabling them to cater to a wide range of concrete structures. By leveraging the suction force of the magnetic cups, the side molds are securely pressed against the platform, thereby fixing the entire formwork system in place. This ensures precise alignment and prevents any deformation or movement during the concrete pouring and curing processes.
Features:
- Integrated Stability: Steel mold and magnetic system ensure no deformation or movement.
- Enhanced Safety: Simple, fast operation reduces accident risks.
- Ease of Use: Quick mold removal with companion levers.
- Durability: Protected from contaminants, ensuring long-term reliability.
- Versatility: Customizable widths for various concrete components.
Parameters:
|
Model |
L(mm) |
W(mm) |
H(mm) |
Weight(kg) |
Pull Force(kg) |
|
DX-BM1 |
500 |
60 |
70 |
6 |
600kg*2 |
|
DX-BM2 |
810 |
60 |
70 |
9 |
|
|
DX-BM3 |
1000 |
60 |
70 |
10 |
|
|
DX-BM4 |
1200 |
60 |
70 |
11 |
|
|
DX-BM5 |
1400 |
60 |
70 |
13 |
900kg*2 |
|
DX-BM6 |
2500 |
60 |
70 |
18 |
|
|
DX-BM7 |
3000 |
60 |
70 |
25 |
